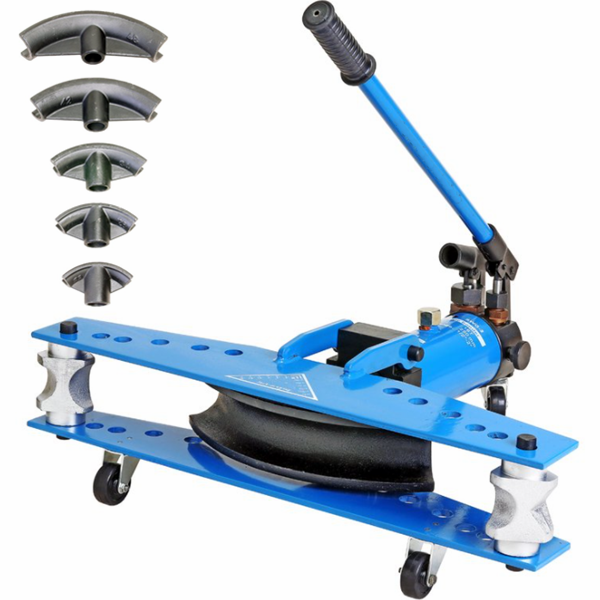

This hydraulic pipe bending machine is suitable for different types of round pipes

Operated manually by 2-stage hydraulic hand pump.

This machine enables exact pipe bending of round pipes.

This tool stands on 3 swivel castors

Technical data:

This tool is delivered with the following adaptors for different pipe diameters

1/2" - 3/4" - 1" - 1 1/4" - 1 1/2" - 2"

Pipe wall thickness: from 2.5 mm - 4.5 mm

Bending area: up to 90°

Hydraulic rod pressure force: 16T

Hydraulic rod stroke: 240 mm

Dimensions (length x width x height): 570 mm x 690 mm x 250 mm

2 universal counter bearings with quick adjustment

2-stages Hydraulic pump: one of the mountings for hand pump lever is for fast feed, the other one for slow feed at higher pressure. So you can reach the workpiece very fast with few strokes.

Note:

1/2" equals a pipe diameter of approx. 22 mm

3/4" equals a pipe diameter of approx. 28 mm

1" equals a pipe diameter of approx. 34 mm

1 1/4" equals a pipe diameter of approx. 42 mm

1 1/2" equals a pipe diameter of approx. 48 mm

2" equals a pipe diameter of approx. 60 mm

Weight: 42 kg
Shipping weight: 49 kg
